GIGABYTE GA-K8N51PVMT-9 (GF6150) Intro 2/5
Bluetooth 1 JAN 2006

Gallery

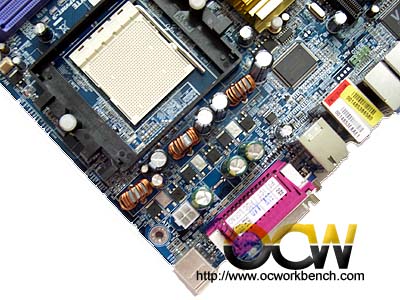

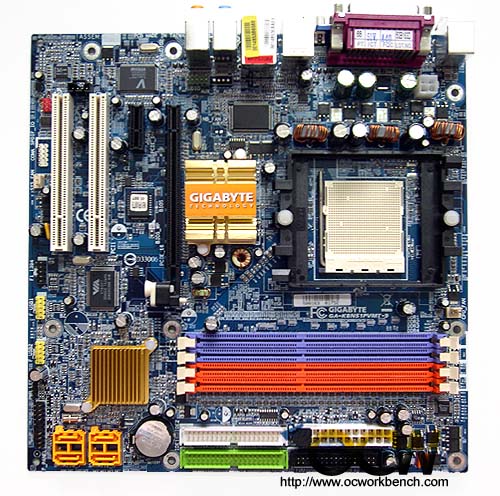

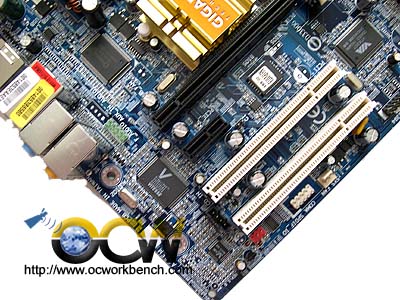

The board comes with 2 PCI, 1x PCIe x1 and 1 PCIe x16 slots. The power on board is based on a 3 phase design. If you notice, Behind the slots are I/O controller chip, audio codec and at the centre you will see the GbE PHY chip. On the left is the ALC 880 7.1 audio codec.

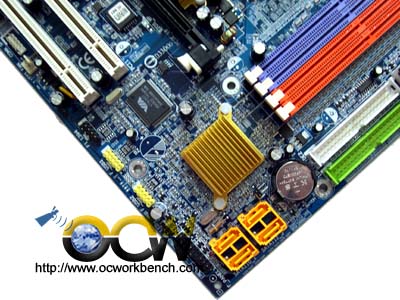

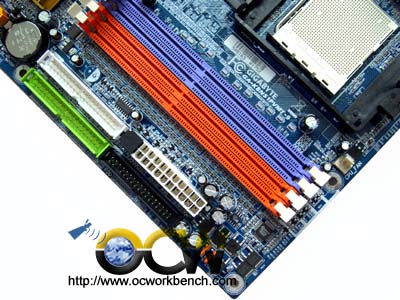

Further down to the left, you will see the SATA II ports, USB external connectors. south bridge, front panel connectors. Towards the centre, we see the C51PV north bridge, CPU Socket939, 4 DIMM slots and 2 IDE ports.

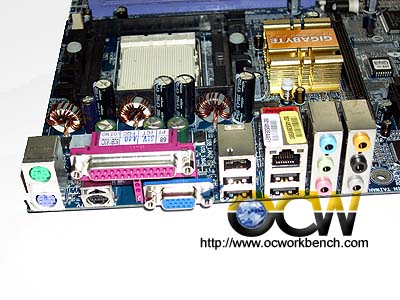

The back panel consists of PS/2 Keyboard and Mouse, Svideo, COM port, VGA port, 1 x 1394, 4 USB ports, 1 x GbE port and 8ch audio ports.
