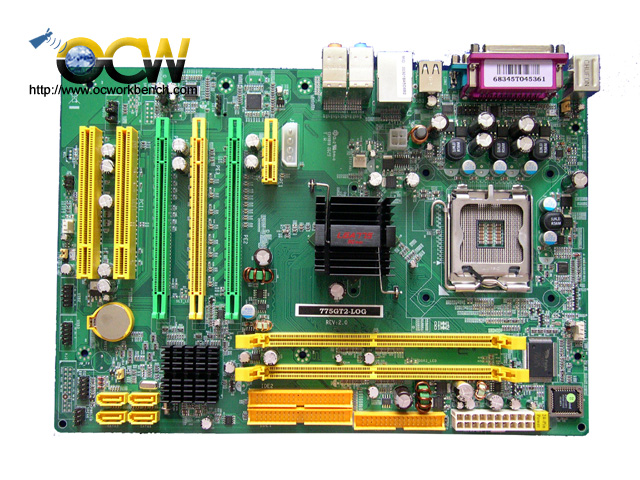

Jetway 775GT2-LOG NF 570 SLI Conroe Mainboard 2/5
Bluetooth 14 Aug 2006

Pricing of 7800GTX >>>

Gallery

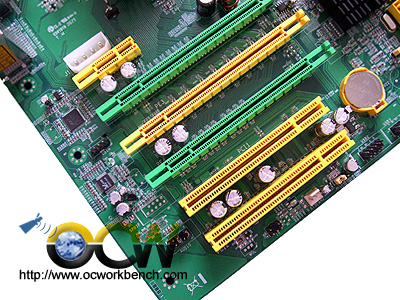

It comes with 2 DDR2 DIMM slots supporting up to a maximum of 4GB of memory. In terms of expansion slots, the board comes with three PCIe x16 length slots which will function as 2 x PCIex 8 (Dual green slots) or 1 x PCIe x16 (single yellow slot), depending on where you slot the graphics card. This saves you the trouble of swapping in / out of a peddle card in old designs to switch between SLI and NON SLI mode.

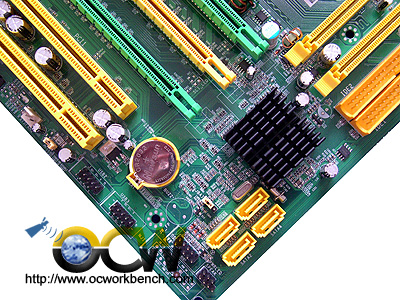

There is 2 PCI slot and 1 PCIe x1 for future expansion. Te board also has 2 PCIe IDE controller supporting ATA133 and 4 SATA ports supporting 3Gb/s and canbe configured to run in RAID 0,1,0+1.

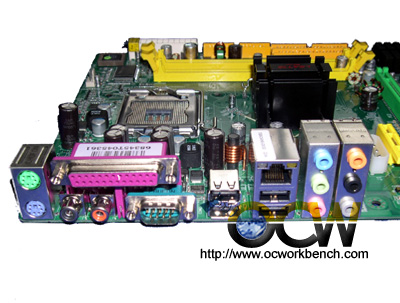

The board comes with 4 USB on board + 4 more through extensions. It also has a Marvell 8*E1116 PCie GbE LAN , 8 Ch audio and SPDIF In/out at the back panel of the mainboard.
