ASRock
ConRoe1333-DVI/H HDCP Mainboard Review Intro 4/4
Bluetooth 1 Mar 2007
|
Pricing
of
ASRock ConRoe1333-DVI/H
>>> |
|
BIOS Screen shot
|
 |
 |
|

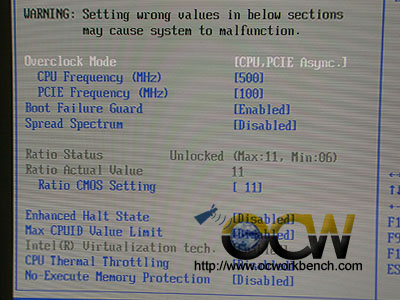

CPU Host Frequency range
is up to 500MHz. As we are using a ES
X6800, CPU Mutliplier is 11x which can be lowered. |
DRAM Frequency can be set to operate in
DDRII400, DDRII533 or DDRII667. In our test of the X6800, we ran the board
in SYNC mode of DDR2-533. |
 |
 |
|

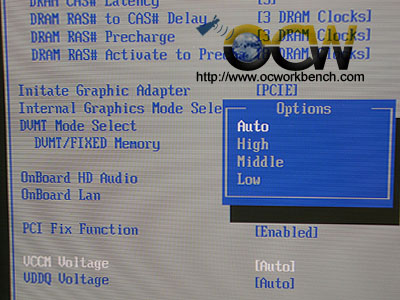

VCCM voltage can be set to AUTO,HIGH,
MIDDLE or LOW |
Fixed, DVMT or Fixed+DVMT mode can be
selected for onboard video

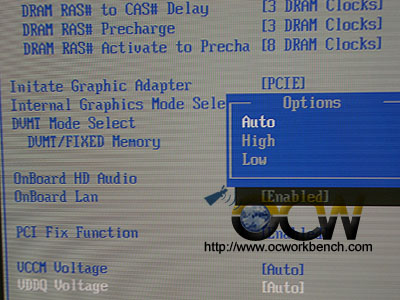

VDDQ voltage can be set to Auto, High or
Low. |
 |
|

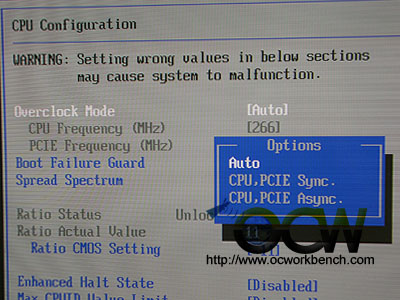

| Overclock mode can
be set to be AUTO, CPU,PCIE ASYNC or CPU, PCIE SYNC. For overclocking, it is
mentioned in the manual that it should be set to SYNC. At 333MHz, PCIe bus
runs at 115MHz. |
|
