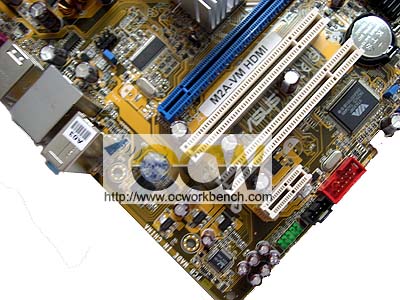

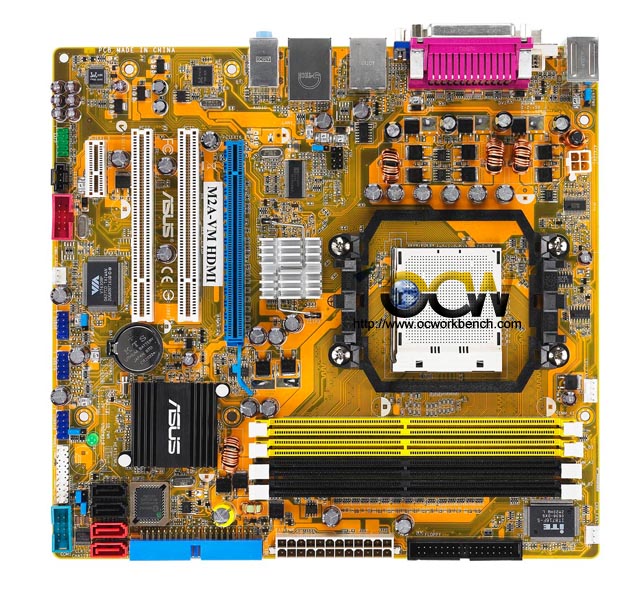

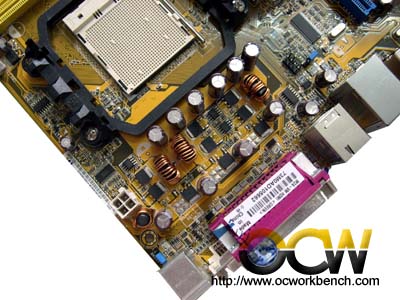

On first inspection of the board, we see a lot of similarities with other AMD 690G boards. On the top left corner, we can see the audio codec and LAN PHY. There are 2 PCI slots 1 PCIe x16. Towards the centre we can see the CLK gen, there is also a 4 pin AUX for power connector on the right hand side of the board. The board uses a . On its right is a 3 phase design.

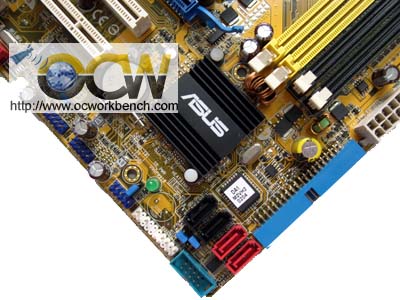

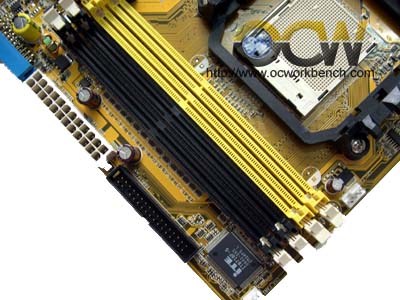

On the side, we can see the connectors for USB bracket. On the bottom left corner is the front panel connector, bios, 4 SATAII ports, 1 IDE, 1 floppy connector and the 24 pin power connector. 4 DIMM slots coded in yellow and black sits right below the CPU socket.

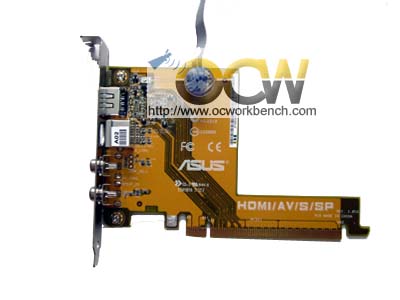

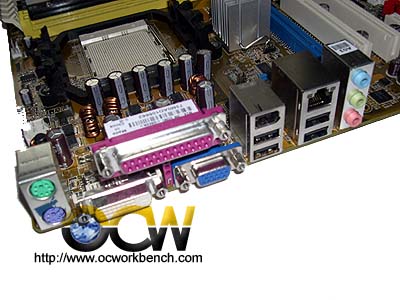

The back panel consists of PS/2 Keyboard and Mouse, 4 USB ports, 1 D-SUB, 1 DVI-D 1 x GbE LAN port and 8 ch audio ports. The PCIe x16 slot in blue can be paired with an external graphcis card or with the daughter card for HDMI / S-VIDEO / VIDEO + S/PDIF.
