ASUS Maximus Extreme R.O.G Intel X38/ICH9R Mainboard Review Intro 2
Bluetooth 24 Oct 2007

Pricing of
ASUS P5E3 Deluxe

>>>

Gallery

The board comes with 3 PCIe x 16, 2 PCI and 1 PCIe x1. As the board uses the IDT Switch, it actually splits one of the PCIe x16 into Dual PCIe x8. Thus, it might be possible to take advantage of CrossFire X, linking up three graphics cards in the future.

There are 6 SATAII ports supported by ICH9R. The IDE and 2 eSATA2 ports are supported by the Jmicron JMB363. There are 4 DIMM slots supporting up to 8GB of DDR3-1333 (can be o/c to 1800). The crosslinx chip resides side by side with the South bridge ICH 9R (covered by blue heatpipe).

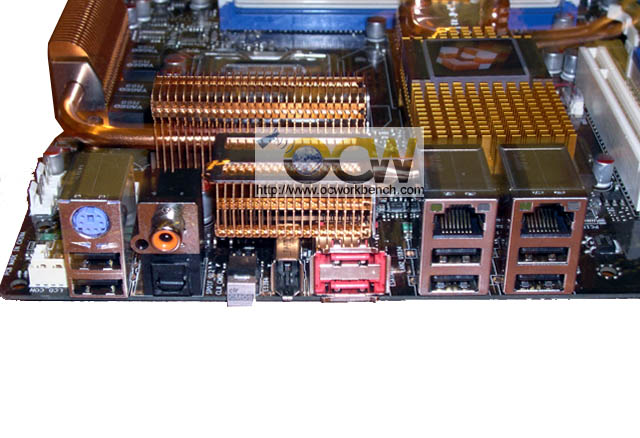

At the rear panel, you will see the PS/2 Keyboard connector, 6 USB ports, S/PDIF Coaxial/optical, reset button, 1394, 2 eSATA2, 2 GBE ports.
