ASUS P5E3 Deluxe WIFI/AP edition Intel X38/ICH9R Mainboard Review Intro 2/6
Bluetooth 27 Sep 2007

 Pricing of
Gigabyte P35-DQ6

>>>

Gallery

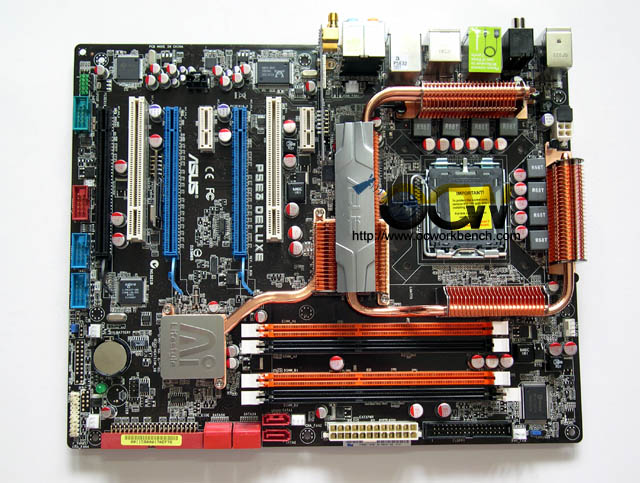

The board comes with 2 PCI, 2 PCIe x1, 2 PCIe x 16 (electrically) slots and 1 PCIe x16 (4x/1x) electrically. On the top left corner of the board, you will see the JMB363 SATAII controller. To its right are the Realtek GbE and ADI audio codec. Close to the top centre, you can see the WIFI card slotted vertically to the board. On the right is the heatpipe surrounded LGA775 socket.

At the bottom left corner you will see the front panel connector in white. Further up are the USB and IEEE1394 connectors. Next to it is the agere 1394 controller chip. Further down, we can see the CMOS battery. The ICH9R is seated below the heatpipe labelled Ai. It supports the 6 SATAII ports right below. To its right are 4 DDR3 slots and power connector next to it.

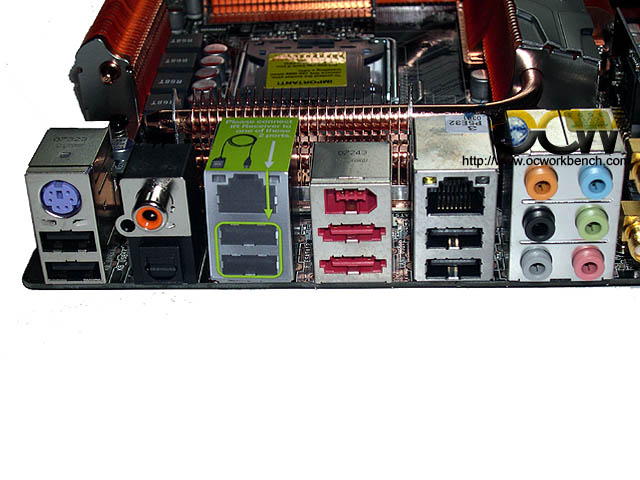

On the back panel, you will find the PS/2 Keyboard but no PS/2 Mouse port. There is S/PDIF digital and Coaxial out, 6 USB ports, 1 1394, 2 GbE and 7.1 ch audio ports. On the right (not shown in picture) is the connector port for the WIFI A/P
