Gallery

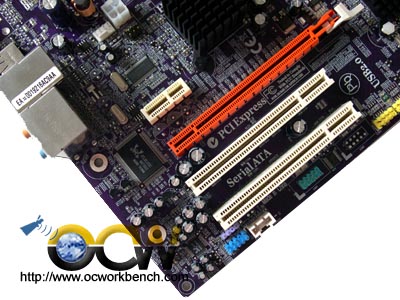

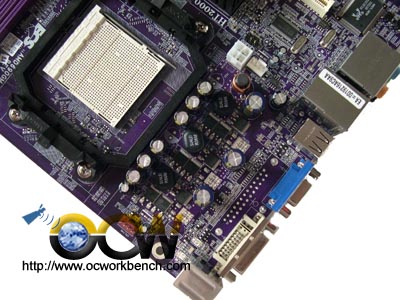

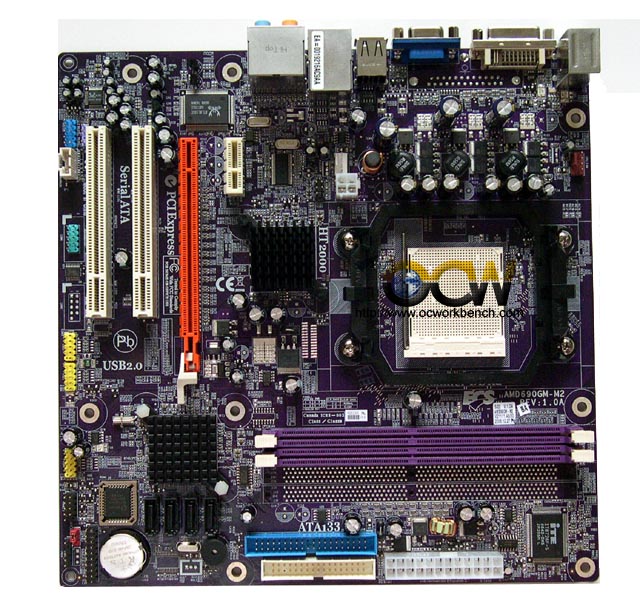

Firstly, lets take a look at the mainboard. On tht top left corner, we can see the audio codec and LAN PHY. There are 2 PCI slots 1 PCIe x16 and PCIe x1. Towards teh centre we can see the CLK gen, the North bridge. On its right is a 3 phase power circuit with AUX 4 pin connector and CPU Socket.

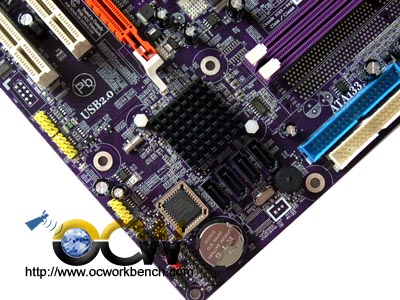

On the side, we can see the connectors for USB bracket (yellow), COM port (green) and audio ports (blue) On the bottom left corner is the front panel conector, bios, 4 SATAII ports, 1 IDE, 1 floppy connector. There are 2 DIMM slots.

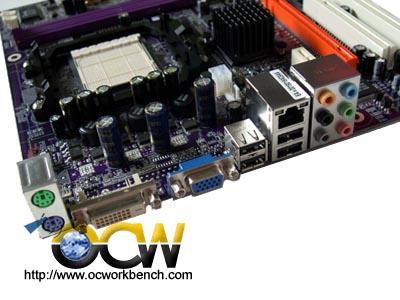

The back panel consists of PS/2 Keyboard and Mouse, 4 USB ports, 1 VGA, 1 DVI, 1 x GbE LAN port and 8 ch audio ports.
