ECS GeForce6100SM-M (NVIDIA MCP61S 6100-405) mainboard review intro 2/5
Bluetooth 25 Jan 2007

Pricing of
ECS GeForce6100SM-M

>>>

Gallery

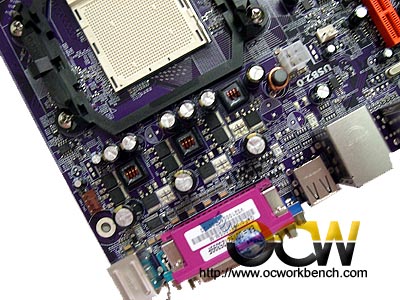

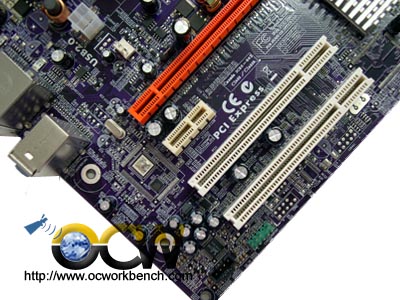

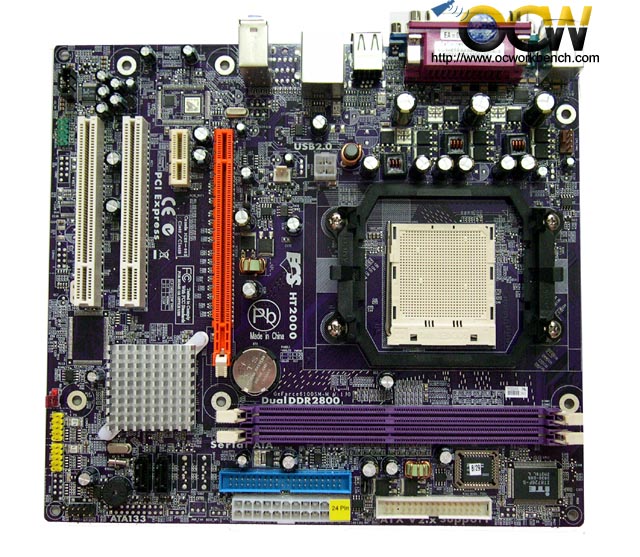

Firstly, lets take a look at the mainboard. On the top left corner, we can see the audio codec, 2 PCI, 1 PCie x1 and 1 PCie x8 slot. Behind the PCIe x1 is the LAN PHY. To the right is the 4 pin AUX and 3 phase power regulator. Below it is the AM2 socket.

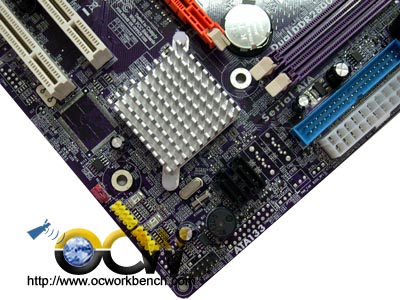

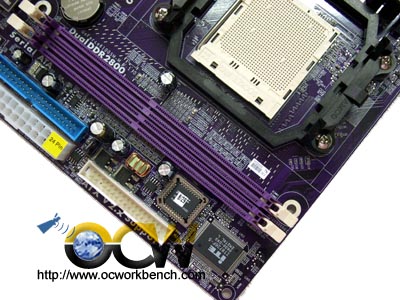

on the bottom left hand corner, we can see the USB connectors in Yellow. The Single Chipset 6100-405 (MCP61S) can be seen with a passive heatsink. On te right is 2 DIMMs supporting 2 DDR400/533/667/800 modules.

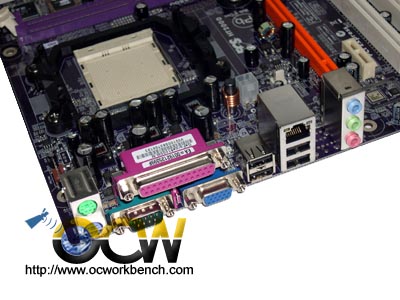

The back panel consists of PS/2 Keyboard and Mouse, 4 USB ports, 1 LPT, 1 VGA, 1 COM 1 x Fast Ethernet port and 6 channel HDA ports.
