ECS NF650iSLIT-A (NVIDIA 650i) mainboard review intro 2
Bluetooth 20 Feb 2007

 Pricing of
nForce 650i board

>>>

Gallery

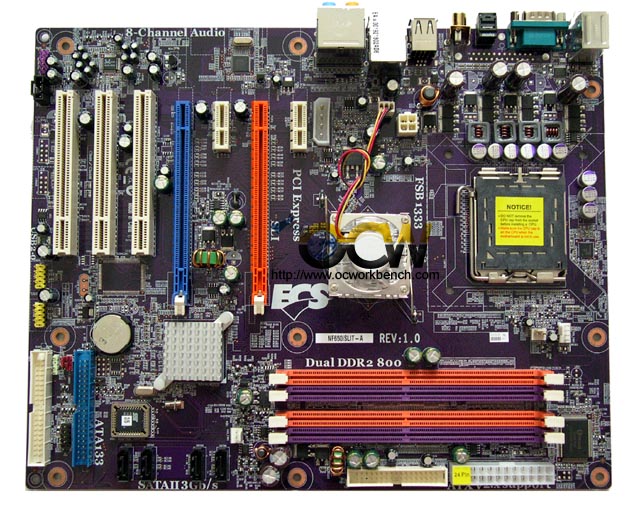

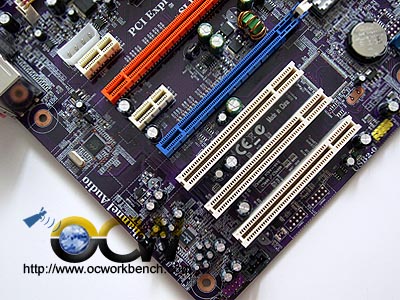

Firstly, lets take a look at the mainboard. On the top left corner, we can see the audio codec, 3 PCI, 2 PCie x1 and 2 PCie x16 full length slots. Behind the PCIe x1 is the GbE PHY. To the right is the 4 pin AUX and 4 phase power regulator.

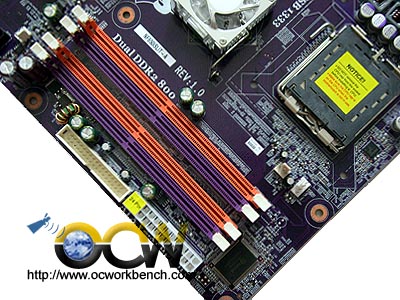

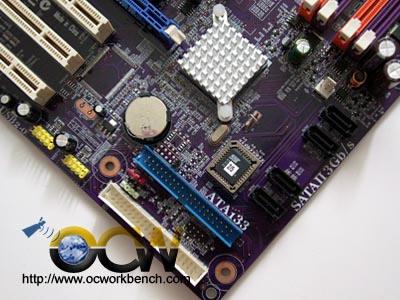

On the bottom left hand corner, we can see the USB connectors in Yellow. 2 IDE connectors and 4 SATAII ports are supported by the South bridge. To the right, there are 4 DIMM slots that can accomodate up to 32GB of memory.

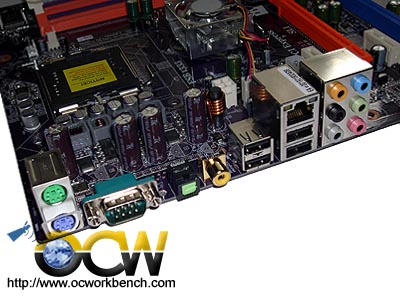

The back panel consists of PS/2 Keyboard and Mouse, 4 USB ports, SPDIF, 1 COM 1 x Gigabit  Ethernet port and 8channel HDA ports.
