Gigabyte GA-MA790FX-DQ6 (AMD 790FX) mainboard review - BIOS Screen shots
Bluetooth 16 Nov 2007

BIOS 2 (Updated with BIOS F2j)

The screen shots are taken with board installed with a Phenom GP-9600 processor. If you are using a AM2 processor, some of the options might not be visible.

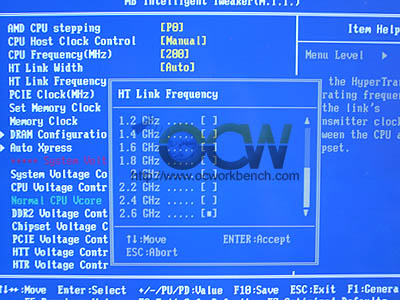

CPU Frequency can be set from 200 ~ 500MHz. There is no CPU ratio/multiplier option available in this BIOS.	HT link frequency can be set to beyond 1GHz, up to 2.6GHz or 13x

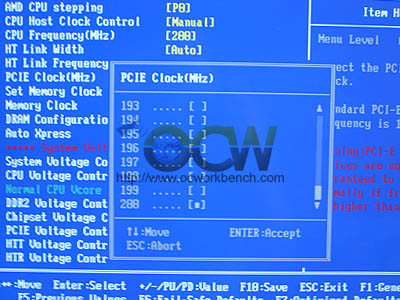

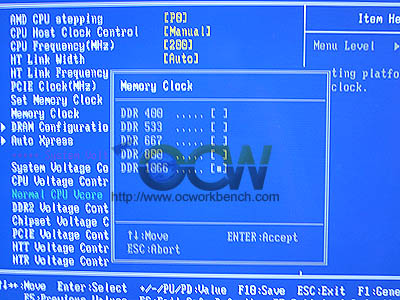

PCIe CLK can be set to 200MHz	ASync Memory clk can be se to 1066 MHz

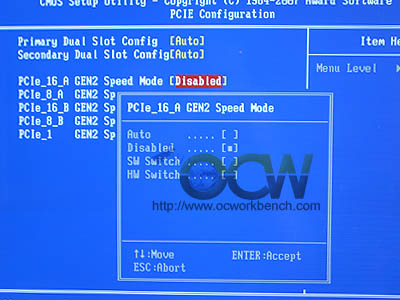

Over here, you can set the individual parameters related to the DRAM including command rate, trfc, cas latency etc.	In PCIe configuration, there is this option which enables the speed mode of PCIe gen 2 slot. It can be set to auto, disabled, SW and HW switch.
