ASRock P43DE Intel P43
ICH10 chipset mainboard
review - BIOS Screen shots
Bluetooth 10 Nov 2008
BIOS 1
The screen shots are taken with board installed with a Intel
QX9770.
|
|
|
 |
 |

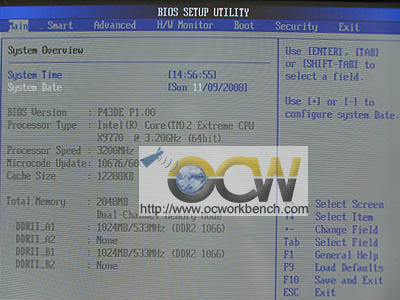

| Main bios screen shot showing
the CPU used, memory used on board. BIOS is P1.00 |

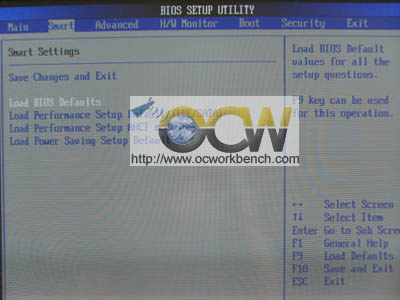

Under Smart BIOS, you can now
simply load the Performance or Power Saving defaults. The settings are
already optimised for the respective scenarios. |
 |
 |

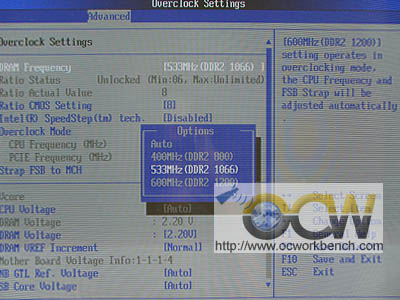

| Under Overclock settings. You
can change the CPU ratio, Freq, PCIe, FSB Strap, DRAM freq, CPU, Dram,VREF,
SB Core voltages etc. YOu can also change the CPU:RAM ratio as shown in the
screen above. |

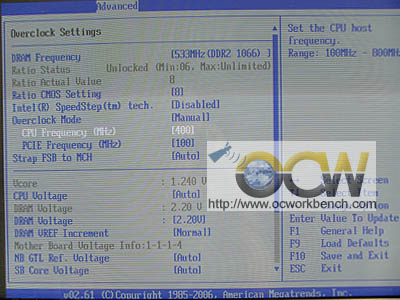

To overclock a 266 or 333mhz
FSB processor, you can fool the system by strapping it as a higher fsb
processor thereby giving you more options for the memory divider. CPU Freq
ranges from 100 to 800MHz. PCIe from 100 to 150MHz. |
 |
 |

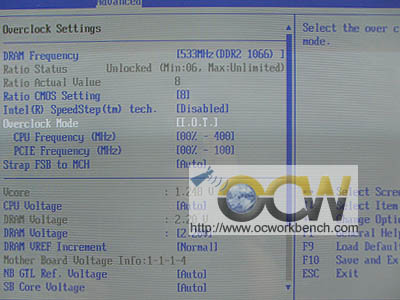

| For overclock mode, you can
also choose to use I.O.T which sets a percentage to o/c. |

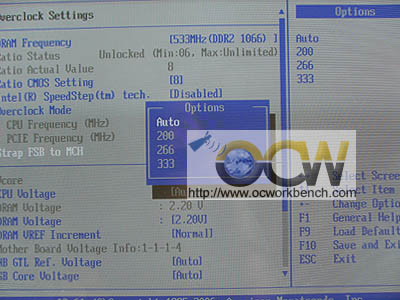

Strap FSB can be Auto, 200,266
or 333 |
