BIOS options of the ASRock ION 330 system
2
|
 |
 |
|

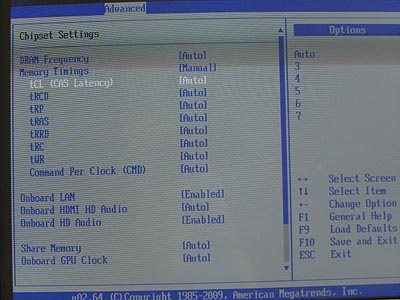

If you would like, you can set your own Ram timings. |
The GPU CLK can be overclocked from 450MHz to 600MHz |
 |
 |
|

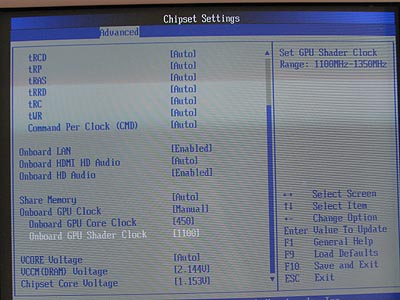

Likewise the shader clock can be adjusted upwards from 1100MHz to 1350MHz |
Vcore selectable from 1.021v to 1.315v |
 |
 |
|

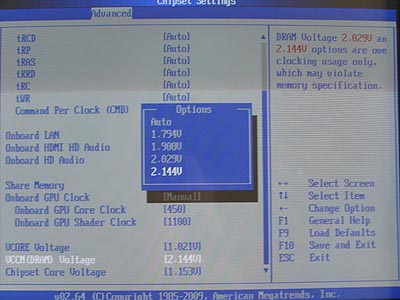

the Vdimm is selectable up to 2.14v |

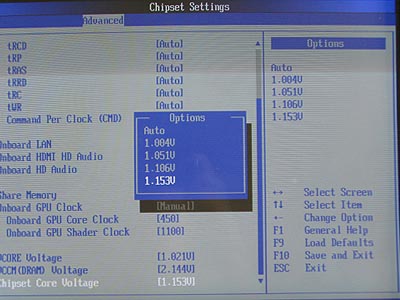

Chipset core voltage can be increase to 1.153v |
 |
 |

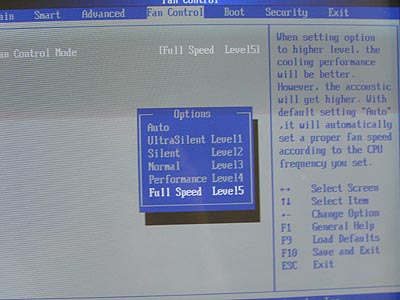

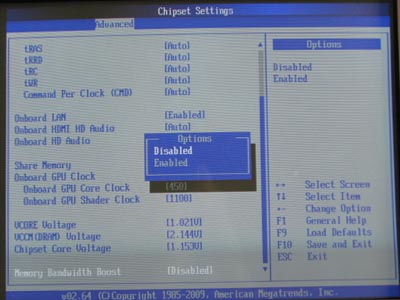

| Memory bandwidth boost can be enabled or disabled. | One of the most important feature. There are 6 options for your fan speed. For overclocking, it is advisable to set it to full speed. If not, Auto is good enough for a quiet system |
