The screen shots are taken with board installed with a Core i5 750.
|
|
|
 |
 |
Voltage levels can be adjusted
in the BIOS.

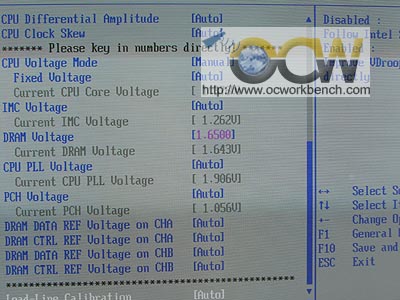

CPU voltage can be set in two modes. Offset or manual mode.
Offset mode range is from 0.00625v - 0.5v where as manual ranges from 0.85v
- 2.10v
DRAM range 1.5 - 2.5v
CPU PLL voltage 1.8v - 2.1v
PCH voltage 1.05, 1.15v |

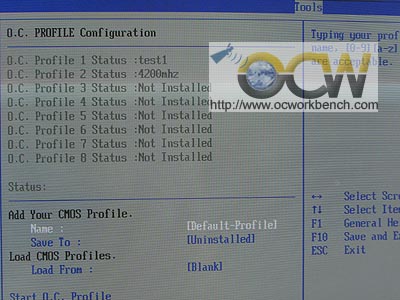

This board supports up to 8
profiles. You can save your overclocked profiles into one of the 8 slots so
that you can reuse it. You can also export it and share it with your
friends. |
 |
 |

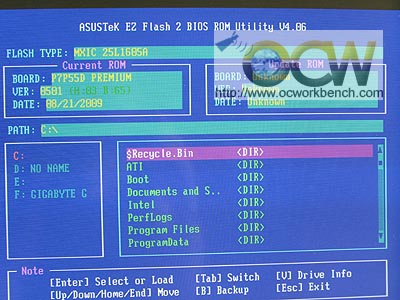

| ASUS EZ Flash 2 allows you to
flash bios without entering the Windows . It can be done at BIOS level. |

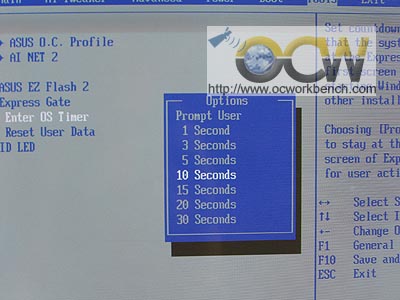

Express Gate OS timer can be
set |
 |
|

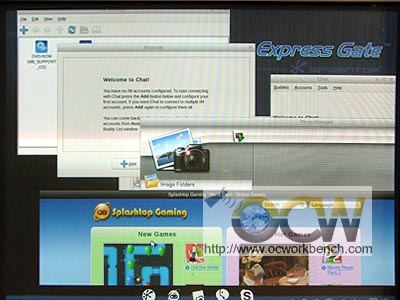

| A screen shot of Express Gate
running game, chat, browser etc. |
|
