BIOS Screen shot 1 of
ASRock H55M Pro mainboard
Review
Bluetooth 3 Jan 2010
BIOS 1
|
|
|
|
 |
 |
|

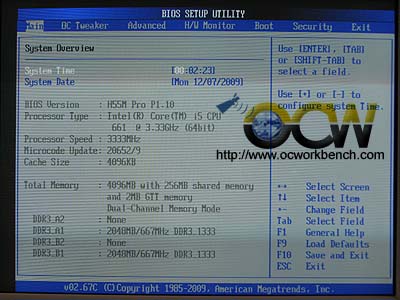

The BIOS SETUP Screen. The BIOS is P1.10. and CPU used is
Core i5 661 @3.33GHz. |

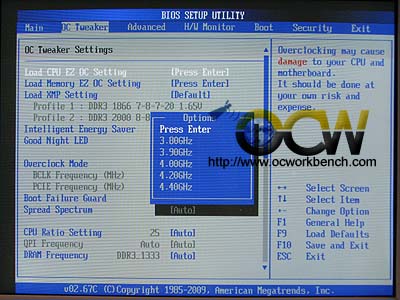

ASRock EZ OC. You can select from the proven settings from
the pull down menu. 4.4GHz POSTED without any problems in our test. |
|
 |
 |
|

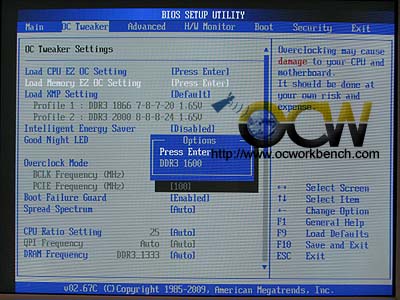

Alternatively, if you want optimum memory, load Memory EZ OC
can help. In this case, only one option is available, that is DDR3-1600.
Different processor will give different values for selection. |

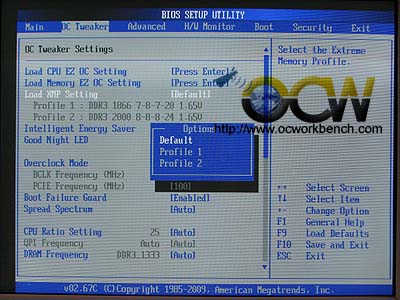

Otherwise, you can choose to use XMP profile #1 or #2.
Depending on the high BCLK and CPU used, it may or may not work. |
 |
 |
|

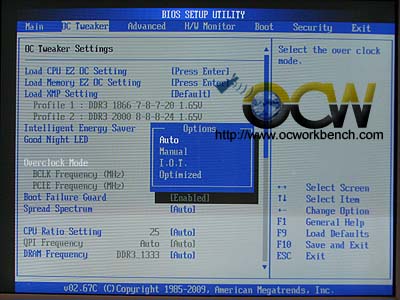

There are various OC modes, auto, manual, IOT or optimized. |

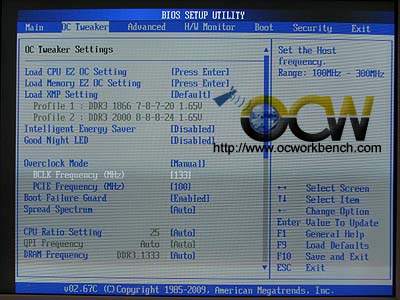

If you set it to Manual, you can set the BCLK, PCIE , BCLK
ranges from 100 to 300MHz |
 |
 |
|

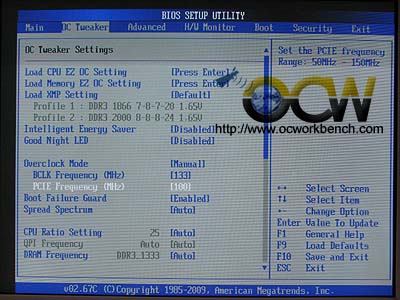

PCIe Frequency can be set from 50MHz to 150MHz |

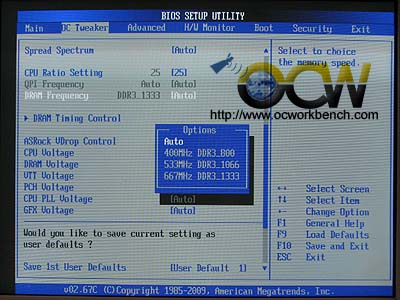

DRAM frequency can be set from DDR3-800,1066, 1333. |
