Mainboard Layout of Gigabyte GA-890GPA-UD3H AMD 890GX+SB850 mainboard review
Bluetooth 28 Feb 2010

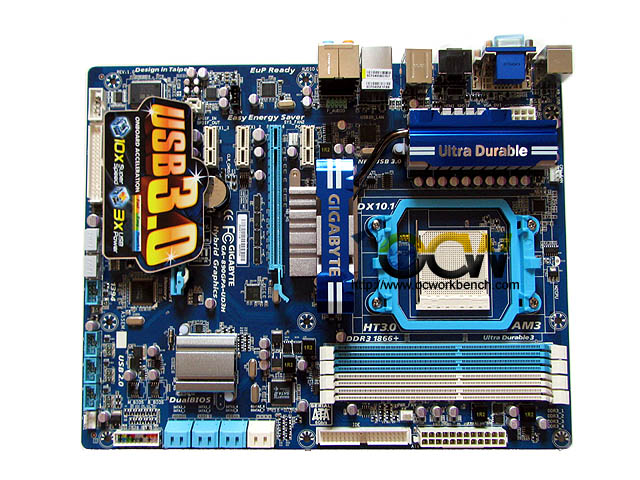

The mainboard comes with 2 PCI slots, 2 full length PCIe 2.0 and 3 PCIe 2.0 x1 slots on board. The two full length slots runs in Dual 8x when in CrossFire mode. Behind the PCIe slots are the controller chip, audio codec, GbE, NEC USB 3 controllers. To its right is the heatpipe surrounding the CPU. Underneath the heatpipe you will find the mosfets, the North bridge with 128M Sideport memory from Hynix.

Right below on the left you will see the USB 2.0 connectors, 6 SATA3 6Gbps ports. 1 IDE and 2 SATA2 3Gbps port supported by Jmicron chipset right at the bottom. To the right is 4 DIMM slots supporting up to DDR3-1866+ (OC) of up to 16GB of memory in total.

There is a multi coloured pin layout for soft power and reset switch.

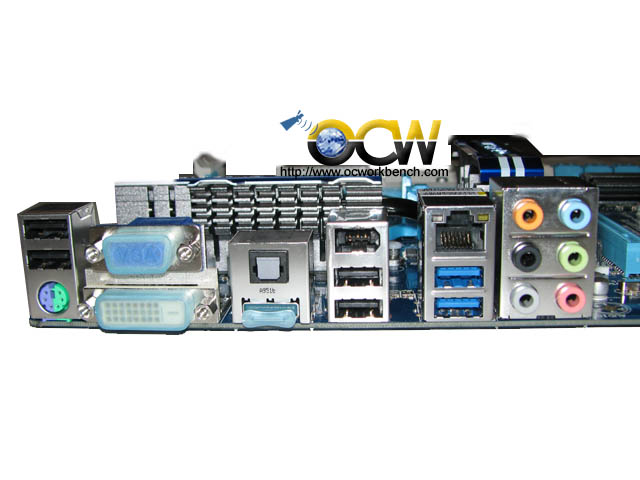

On the back panel are the PS/2 Keyboard/mouse port, 1 DVI-D, 1 D-SUB, 1 SPDIF, 1 HDMI, 1 1394, 2 USB, 1 GBE,  2 USB 3.0 and audio ports.
