Mainboard Layout of Gigabyte GA-H55M-USB3
Bluetooth 14 Feb 2010

Gallery

The GA-H55M-USB3 comes with 2 full length PCIe 2.0 slots for graphics which can be run in CrossFire mode. There are 2 PCI slots too. Behind the slots are the Realtek audio and GbE LAN controller. On the right hand corner, we can see the clear out area surround the CPU socket LGA1156. There is a 4 pin aux power to is right.

Furthurdown, we can see the 4 DIMM slots supporting up to a total of 16GB of DDR3 (oc/DDR3-1666). Below it is the FDD and IDE connector. To the left of it are 5 blue SATA2 ports (+1 as eSATA at backpanel) and 2 SATA2 ports supported by Jmicron chip. There is a hidden 134 controller chip hiding below the blue PCIe slot. ON the left are connectors for external brackets USB and 1394.

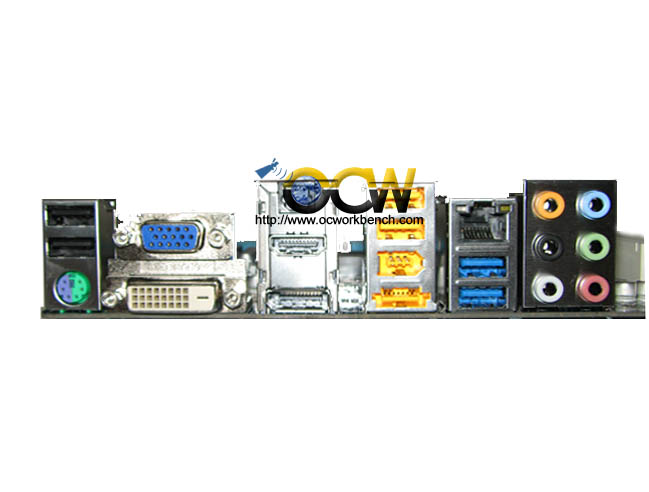

On the back panel are the PS/2 Keyboard, 2 USB, D-SUB, DVI-D, Display port, HDMI, S/PDIF, eSATA, 1394, USB, USB3.0 x2, GbE, 8 ch audio ports.
