MSI KT3 Ultra ARU (1)
 Overclocker 19 Feb 2002

After much success being the first manufacturer to release MSI K7T266Pro2-RU, MSI did it again with their KT3 Ultra mainboard. MSI KT3 Ultra ARU is the latest offering from MSI featuring the latest KT333 +8233A combination. For those who are familiar with the K7T266Pro2-RU, KT3 Ultra has new additions which might appeal to you. Firstly, this board now officially supports the DDR333 standard. Secondly this board has ATA-133 support. The mainboard also feature ATA-133 RAID using Promise chipset. Other important features include 6 ch audio which allows you to turn this board into the heart of a dolby digital home theatre system.

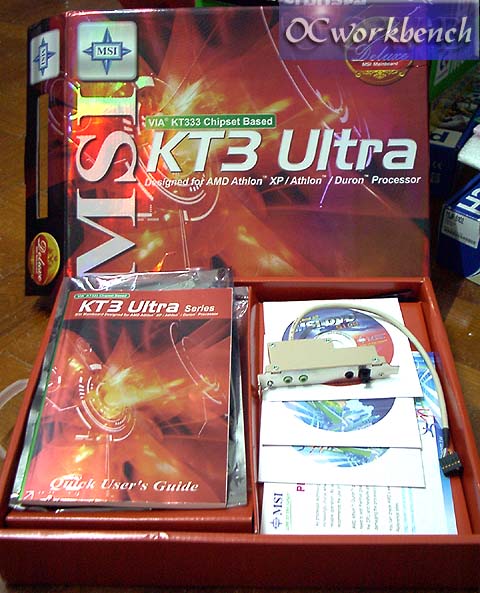

The KT3 Ultra ARU is based on the AMI BIOS, the settings in BIOS allows you to change the FSB from 100~220Mhz FSB at 1Mhz steppings, the Vcore can also be adjusted within the BIOS from Auto up to 1.85V. In our tests, we used the AMD Athlon XP1500+ and ran it under the most agressive RAM timings we could. It went through all the rigorous tests at default speed. In fact, we stress the system further by pushing it to 150Mhz and above. The package as usual comes standard with a user's manual, FDD and HDD cables, a supporting CDROM. There are also USB extension brackets available for expansion for USB 2.0 and USB 1.1. There is a also a SPDIF optional bracket for hooking up to speakers and digital out.

Below are the specifications of the board. The subsequent pages will be the gallery followed by benchmark results including SuperPI, Q3, DroneZ etc.

Detail Specifications



Special Features

Fuzzy Logic3™
S-Bracket™
D-Bracket™
Live BIOS™
Live Driver™
MSI™ DVD 5.1ch

CPU

- Support Socket A (Socket 462) for AMD® Athlon™ / Athlon XP / Duron™ processor
- Support 600MHz up to 2000+ MHz processor and higher

Chipset

VIA® KT333 (552 BGA) Chipset
- FSB @200/266MHz
- AGP 4X and PCI Advanced high performance memory controller

VIA® VT8233A (376 BGA) Chipset
- High Bandwidth V-link Client controller
- Integrated Faster Ethernet LPC
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 66/100/133 master mode PCI EIDE controller
- ACPI

FSB

100/133 (200/266)MHz clocks are supported

Main Memory

-Support six memory banks using three 184-pin DDR DIMMs
-Support a maximum memory size up to 3GB
-Support 2.5v DDR SDRAM DIMM

Slots

*One AGP (Accelerated Graphics Port) slot
-- AGP specification compliant
-- Support AGP 2.0 4x
*One CNR (Communication Network Riser) slot
*Five 32-bit Master PCI Bus slots
--Supports 3.3V/5V PCI bus Interface

On-Board IDE

- An IDE controller on the VIA® VT8233A chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes
- Can connect up to 4 IDE devices

Audio

Integrated Realtek® ALC650 Chipset (6-channel S/W audio)
- Direct Sound AC97 Audio
- 6-channel analog output
- Digital SPDIF interface
- Compatible w/ S-bracket

On-Board Peripherals

On-Board Peripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 2 serial ports (COMA + COMB)
- 1 parallel port supporting SPP/EPP/ECP mode
- 1 IrDA connector for SIR/ASKIR/HPSIR
- 1 Audio/Game port
- 1 D-Bracket pinheader
- 1 S-Bracket pinheader

BIOS

- The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
- The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

Dimension

30.4 cm(L) x 23.5 cm(W) ATX Form Factor

Mounting

6 mounting holes.

Special Functions

ATA133 RAID Function
*Promise 20276 On-Board
-- Support ATA133 IDE RAID 0 or 1
-- Can connect up to 4 IDE devices
-- Backward compatible to ATA100 RAID 0 or 1

USB Interface
*USB 2.0 HC On Board
-- Support 4 USB 2.0 ports via external bracket
*Controlled by VT8233A Southbirdge
-- 4 USB 1.1 Ports
