ASUS P4GE-V i845GE Mainboard Gallery (2)
Overclocker 7 Oct 2002

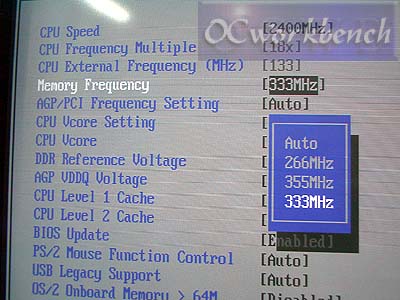

In our tests, we run the CPU:FSB at 2.5x, that is to say that the MEM is running at 333Mhz Async mode. On the board, there is a possibility of setting it to run at 355 mode. That would mean that the memory is in fact running at a FSB of 177Mhz (DDR 355).

The CPU external frequency can be set from 100 ~ 200 at 1mhz stepping

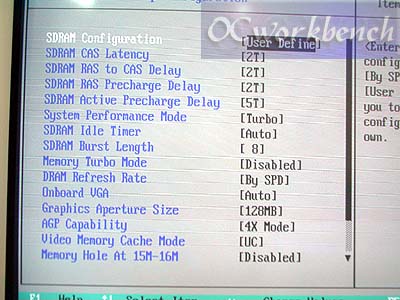

Ram timings are most important and in our tests, we set it to CAS 2, 2-2-5 on our Corsair XMS 3200 512M module. System performance is set to Turbo. SDRAM burst length set to 8, AGP Aperture size set to 128MB.

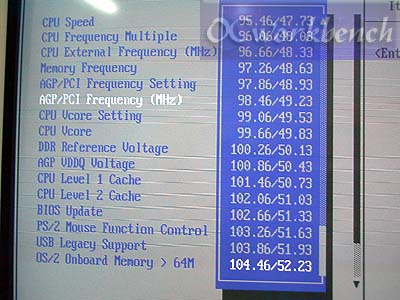

AGP/PCI can also be manually set from 33/66 to a high of 104.46/52.23. What that means is that you could probably run your processor at 133mhz fix and set the PCI/AGP clock higher than 33/66. This seems to be something new. Of course you can FIX it at 33/66.

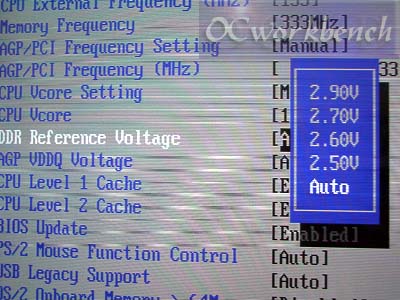

DDR Voltage can be set to Auto, 2.5v ~ 2.9v

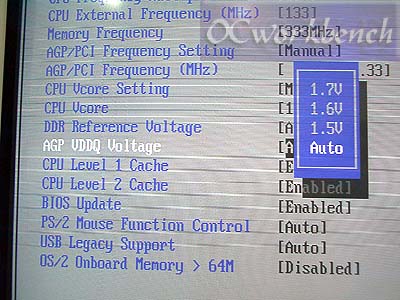

AGP voltage can be set from Auto, 1.5v ~ 1.7v
