Seagate SATA Barracuda ATA V (3)
Overclocker 28 Nov 2002

Benchmarking

Our test environment :

• Intel Celeron 1.2G
• FIC FS35T
• 256M SDRAM
• Seagate Barracuda IV 20G IDE ST31200A in FAT32
• Seagate Barracuda V 120G SATA ST320029AS in FAT32

We will be running 4 popular HD benchmarking programs on the two drives.

• ATTO Disk Benchmark
• HD-Tach 2.61
• Sisoft Sandra 2003 File System Benchmark
• ZDnet Winbench99

ATTO ExpressPro-Tools Disk Benchmark

ATTO ExpressPro Disk Benchmark is a configurable utility that not only benchmarks but can be used to tune the disk performance for applications. In our test, we selected drive c (IDE 20G) vs drive i (SATA 120G) and both runs in Direct I/O mode. To simulate real world applications, we chose overlapped I/O. The graph below shows that benchmarks of the standard IDE Seagate ST32100A 20G HD. It can be seen that at around 32KB transfer size, it reaches a read/write of 38MB/s.

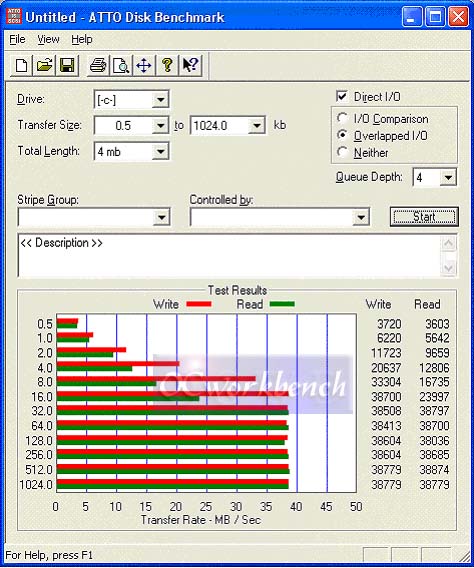

Fig 1 : IDE HD Seagate ST32100A

In Fig 2, we benchmark the SATA HD using the same tool and configuration and it is not difficult to see that at 16KB block size, the system is maintaining a read/write of 40MB/s on the average. The difference is around 8% between the two drives

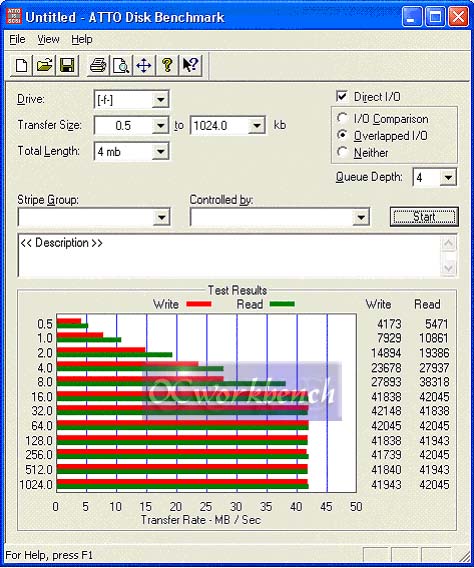

Fig 2 : SATA HD Seagate ST320029AS
