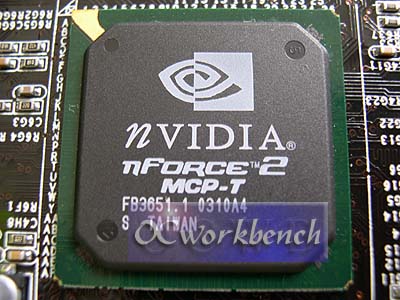

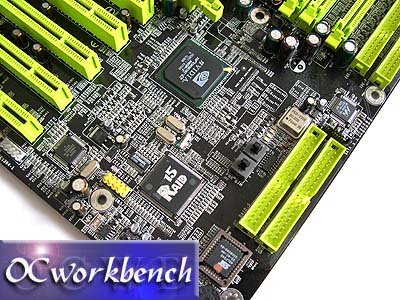

nVIDIA MCP-T, HPT 374 RAID chipset. BIOS.
On board SATA Uses Marvell 88i8030 chip
Supports one SATA (Serial ATA) interface which is compliant with SATA 1.0
specification
(1.5Gbps interface)
Highpoint RAID 0, 1, 0+1
and 1.5
Two independent IDE channels support 4 hard disk drives (UDMA modes
33/66/100/133 or EIDE)
Supports PIO modes 0/1/2/3/4, DMA modes 0/1/2 and UDMA modes 0/1/2/3/4/5/6
|
2 IDE channels, Floppy connector, Power
connector and Winbond I/O chipset.

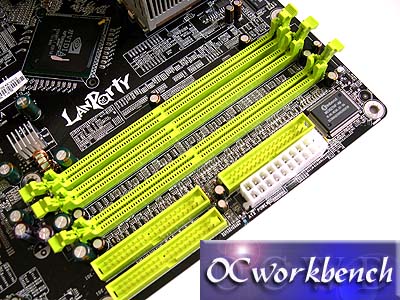

Supports dual channel memory interface
Supports up to 3GB memory (unbuffered DIMM)
Uses PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) or PC3200 (DDR400)
DDR SDRAM DIMM, 2.5V type
Three 184-pin DDR SDRAM DIMM sockets
|
