NCQ - Seagate Barracuda 7200.7 ST3160827A 160G with SiliconImage Sil3124 Host Controller (2)

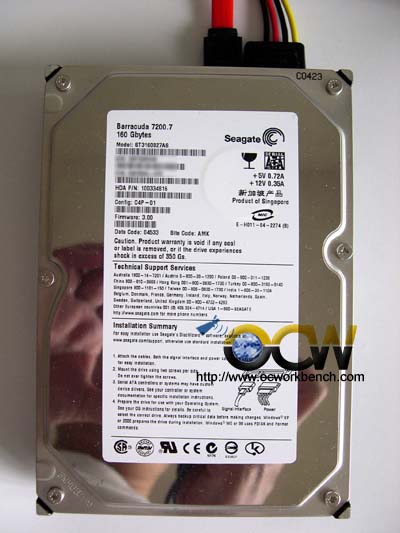

Seagate
Barracuda 7200.7 ST3160827A
160G
ST3160827AS
ST3160023AS
Capacity
and Interface
Formatted
Gbytes (512 bytes/sector) 160
Interface Serial
ATA
Performance
Internal
Transfer Rate (Mbits/sec) 683
Max.
External Transfer Rate (Mbytes/sec) 150
Avg.
Sustained Transfer Rate (Mbytes/sec) >58
Average Seek
(msec) 8.5
Average
Latency (msec) 4.16
Multisegmented Cache 8196
Spindle
Speed (RPM) 7200
Configuration/Organization
Discs/Heads 2/4
Bytes per
Sector 512
Logical CHS
16383/16/63
Recording
Method 16/17
EPRML
Contact
Start-Stops 50000
SeaShield
System No
Reliability/Data Integrity
S.M.A.R.T.
capable Yes
Nonrecoverable Read Errors per Bits Read 1 per 1014
Service
Life/Limited Warranty (years) 5/5
Power
Requirements
+12 VDC
+/-10% (amps typ operating) 2.8
+5 VDC +/-5%
(amps typ operating)
Power
Management (watts)
Seek 12.5
Read/Write 12
Idle 9.3
Standby 1
Environmental
Operating
Temperature (°C) 0 to 60
Nonoperating
Temperature (°C) 70 to -40
Operating
Shock (Gs) @ 2 msec 63
Non
Operating Shock (Gs) @ 2 msec 350
Acoustics,Idle (Bels-typ sound power) 2.5
Physical
Height (mm) 26.035
Width (mm) 101.6 >
Depth (mm) 146.99
Weight (kg) 0.635

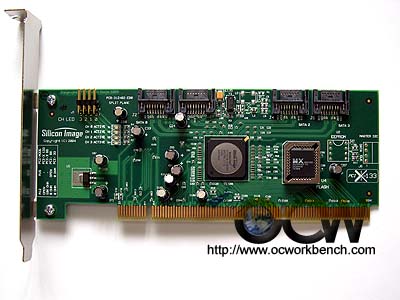

SiliconImage Sil 3124 Host
Controller

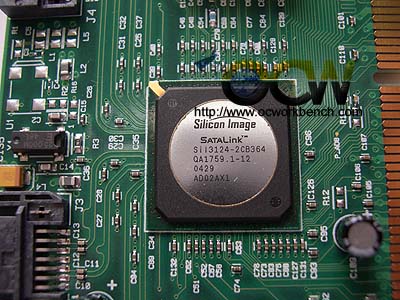

The Silicon Image SiI3124 is a
four-port PCI-X to Serial ATA controller. The SiI3124 is designed to provide
multiple port serial ATA connectivity with minimal host overhead and host to
device latency. The SiI3124 supports a 64-bit 133 MHz PCI-X bus and the Serial
ATA Generation 1 transfer rate of 1.5 Gb/s (150 MB/s).
The card is compatible with PCI slot
as well.
