With the launch of NVIDIA nForce4 family chipset, GIGABYTE Technology unveils its hefty high-performance 8 Sigma (8Σ) series motherboard - GA-K8NXP-SLI. The GA-K8NXP-SLI belongs to the 8Σ family of top performance motherboards, delivering revolutionary technology like PCI-Express SLI Graphics interface, Serial ATA II, NV firewall, and powerful AMD Athlon64FX/ 64 processor support. This platform offers superior performance and functionality to suffice the desire of every power user.

NVIDIA nForce4 SLI offer blistering graphics performance with the ability to bridge two NVIDIA SLI-ready PCI Express™ graphics cards! The SLI design takes advantage of the increased bandwidth of the PCI Express™ bus architecture, features hardware and software innovations within NVIDIA GPU (graphics processing unit) and the NVIDIA nForce4 chipset. Together, the NVIDIA SLI technologies work seamlessly to allow two graphics cards to operate in parallel and share the work and deliver heart-pounding PC performance. NVIDIA SLI is the best solution for driving Multi GPU system performance to experience earth-shattering game play.

The board also comes with lots of goodies including dual Gigabit ethernet, Firewire 1394b, 8 channel audio etc.

Package

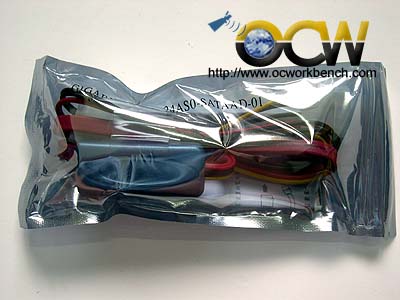

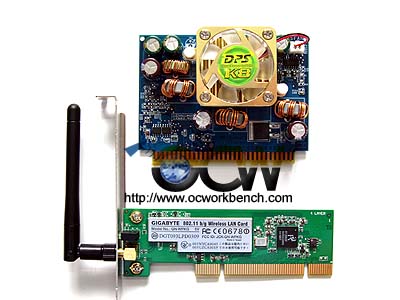

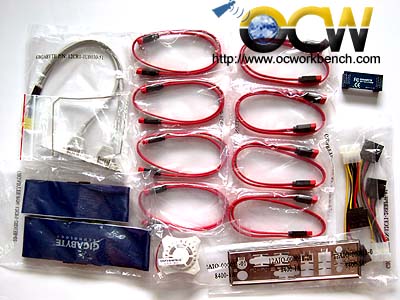

The board comes with a DPS unit, 802.11g wireless pci adaptor, a IDE<->SATA converter, PCI-E bridge for connecting two graphics cards, 8 SATA cables, 2 IDE cables, external bracket (USB), 2 SATA power connector.

Specifications

Σ Memory
Superior Dual channel DDR400 Architecture
AMD Athlon64FX/ 64 achieves the milestone for desktop computing with the CPU-integrated memory controller. This platform supports dual channel DDR400 memory architecture with high bandwidth of up to 6.4GB/s and shorter memory accessing latency thus delivering the greatest memory performance.

Σ D.P.S
Dual Power System
Along with enhanced performance is additional system stability with the GIGABYTE Dual Power System (D.P.S.). D.P.S. is a revolutionary six-phase power circuit designed to withstand varying electrical current levels, ensuring future processor upgrades. This design ensures a more secure and stable platform than ever before.

Σ Networking
Dual Gigabit LAN/ Wireless Technology
For improved networking, Dual Gigabit LAN provides simultaneous WAN and LAN connection at a blazing fast speed of up to 1,000 Mbps. The addition of 802.11g wireless LAN solution provides a more flexible networking connection.

Σ Storage
RAID/ SATA II/ SATA
This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA II is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The NVIDIA RAID allows multi-disk designs to be set up as RAID 0,1,0+1 based on users’ priority of protection/ performance. This NVIDIA RAID function makes the RAID even more accessible by introducing the innovative windows-based facility.

ΣSecurity
NVIDIA ActiveArmor powered Firewall/ Norton Internet Security (NIS)
The combination of NV Firewall & Norton Internet Security delivers complete solution for system security in the thriving networking environment. This overall package provides the solid protection against hackers, viruses, and privacy infringements without scarifying system performance. Utilizing ActiveArmor hardware engine, the NVIDIA firewall fully protects the system from intruders while delivers the highest system performance.

Σ ShieldWare
A solid pack of unique software features
Several unique software features focused on making computing both simple and safe. It includes Download Center for on-line driver installation, M.I.T., S.O.S., M.I.B.2, EasyTune5 for overclocking, and Xpress Recovery for safe recovery and backups.

GIGABYTE Patent DualBIOS^TM
GIGABYTE patented DualBIOS™ technology protects BIOS from virus. With the innovative backup BIOS design, this platform provides a double security thus assuring the PC stability.

8-Channel Audio
Experiences the 3D surround sound through the 8-channel audio solution. The advanced feature fulfills the requirements for a variety of audio applications, such as MP3 or Audio CD playback, DVD movies and gaming thus delivering ideal platform for multimedia solution.

Industry's first IEEE1394b motherboard
This platform is the first motherboard with IEEE1394b FireWire interface from Texas Instruments (TI). With the transfer speed up to 800Mb/s, the new generation IEEE1394b interface further enhances PC connectivity with consumer electronics audio/video (A/V) appliances, and storage peripherals.
