ASrock 775i915P-SATA2 RoHL Mainboard Intro 1/4
Bluetooth 17 Nov 2005

Pricing of
7800GTX

>>>

Introduction

Following the success of the 775i915PL-SATA2, ASrock introduces an environmental friendly RoHS mainboard 775i915P-SATA2. This mainboard, inherits the best of 775i915PL-SATA2 and expands on its feature set. Based on the Intel 915P chipset, the board supports the LGA775 P4 processors (non Dual Core). Something cool about this board is that it now supports 2 DDR400 slots and 4 DDR2 slots. As usual, it comes with the Jmicron SATAII controller on this board. A total of 5 SATA SATA HDDs can be attached to the mainboard (4 SATA, 1 SATA II).

On top of that, there are two PCIe slots (1 x PCIe x16 + 1 x PCIe x 4). It can be used for surround view or CrossFire enabled. How about SLI with a 16x+4x combination? Check it out in the rest of the review. Below are the specifications of the board.

CPU	- LGA 775 for Intel Pentium 4 / Celeron D processor - FSB 800/533 MHz - Supports Hyper-Threading Technology - Supports EM64T CPU
Chipset	- Northbridge: Intel 915P - Southbridge: Intel ICH6
Hybrid Booster	- CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.)
Memory	- Dual Channel DDR/DDRII memory technology - 2 x DDR DIMM slots - Supports DDR400/333 - Max. capacity: 2GB - 4 x DDRII DIMM slots - Supports DDRII533 - Max. capacity: 4GB
Slots	- Supports ATi CrossFire™ - 3 x PCI slots - 1 x AGI Express slot for PCI Express x 16 graphics cards - 1 x PCI Express x 16 slot - 1 x PCI Express x 1 slot
VGA	- n/a
Audio	- Realtek ALC850 7.1channel AC'97 audio codec
LAN	- Realtek PCI LAN 8101L - Speed: 10/100 Ethernet - Supports Wake-On-LAN
Connector	- 4 x Serial ATA 1.5 Gb/s connectors (No Support for "RAID" and "Hot Plug" functions ) - 1 x Serial ATAII 3.0 Gb/s connector by JMicron JMB 360 (PCIE x 1 interface) (Supports "Hot Plug" function) - 1 x ATA100 IDE connector (supports 2 x IDE devices) - 1 x Floppy connector - CPU/Chassis FAN connectors - 20 pin ATX power connector - 4 pin 12V power connector - SLI/XFire power connector - CD in header - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O	ASRock 8CH I/O - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Serial Port: COM1 - 1 x Parallel Port (ECP/EPP Support) - 4 x Ready-to-Use USB 2.0 Ports - 1 x RJ-45 LAN Port - Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
BIOS Feature	- 2Mb AMI BIOS - AMI Legal BIOS - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree
Support CD	- Drivers, Utilities, AntiVirus Software

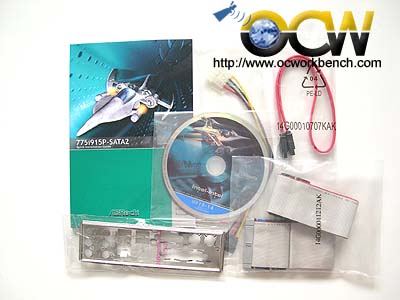

Accessories	- Quick Installation Guide, Support CD, I/O shield - Floppy/ATA 100 cables - 1 x SATA data cable - 1 x SATA 1-to-1 power cable
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Certifications	- FCC, CE, WHQL
