BIOS Screen shot 3 of ASUS M4A89GTD Pro/USB3 AMD 890GX+SB850 mainboard

BIOS Screen shot 3 of ASUS M4A89GTD Pro/USB3 AMD 890GX+SB850 mainboard
Bluetooth 27 Feb 2010

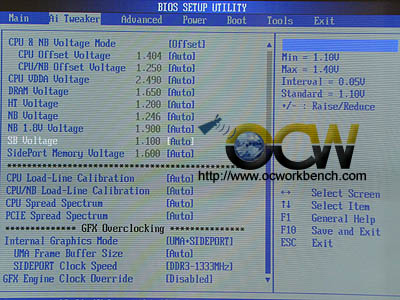

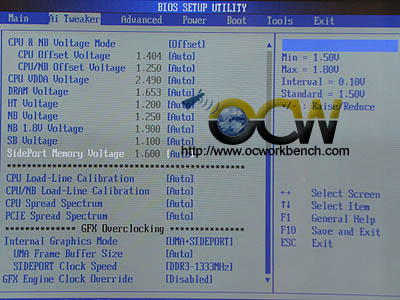

SB voltage from 1.10v to 1.40v	Sideport memory voltage can be upped from 1.5v to 1.8v

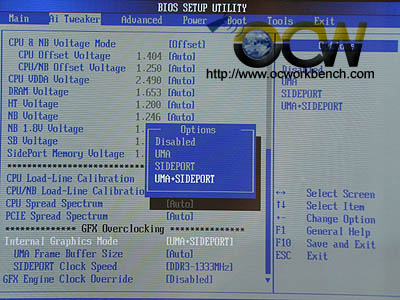

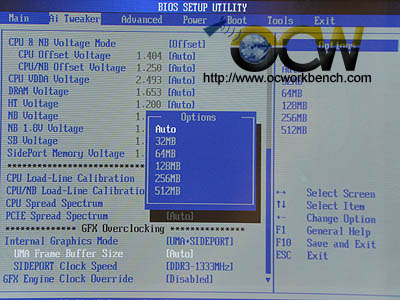

Internal Graphics mode by default is UMA+Sideport for best performance	The UMA frame buffer size is AUTO by default.

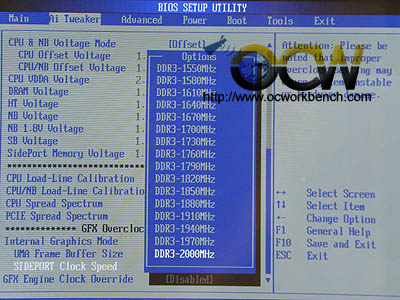

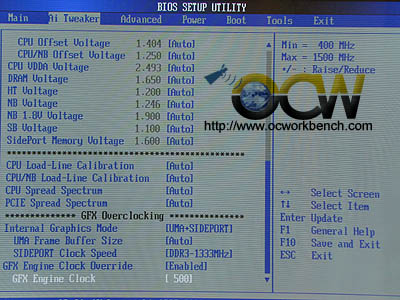

Sideport clock speed can be upped to DDR3-2000 (the memory used is DDR3-1500).	GFX engine can be set from 400MHz to 1500MHz. Default is 700MHz for AMD 890GX

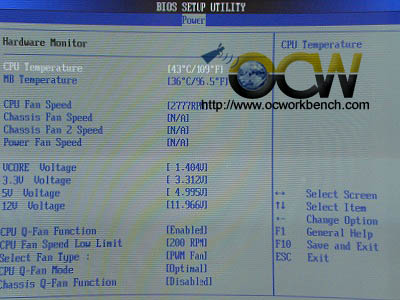

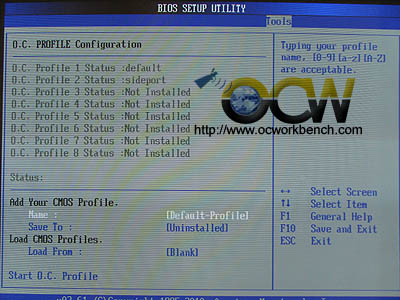

Hardware Monitor gives you an overview of the fan speed, temperatures and voltage levels	You can save up to 8 profiles for this board.

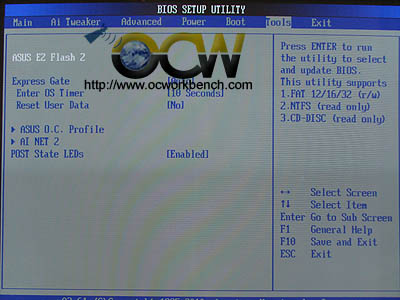

ASUS Ez Flash allows you to flash BIOS using USB disk. Over here you can enable disable Express Gate, access OC Profile, AI NET2
