BIOS Screen shot 1 of
ECS A890GXM-A
AMD 890GX+SB850 mainboard
Bluetooth 1 Mar 2010
BIOS 1
|
 |
 |
|

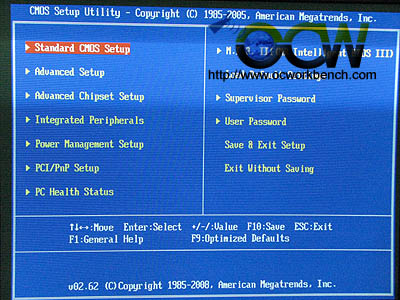

The BIOS SETUP Screen |

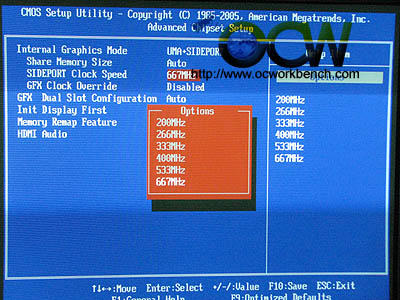

Over here you can select UMA only, Sideport only or UMA +Sideport
for the internal graphics. The sideport clock speed is default at 667MHz. It
can't be increased. The GFX clock can be increased. |
|
 |
 |
|

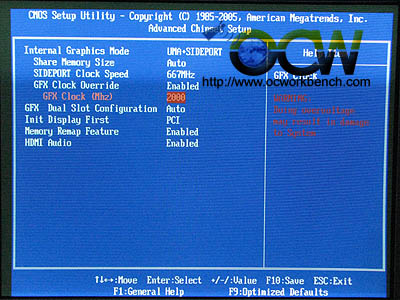

The GPU clock default is 700MHz for ATi Radeon HD 4290. It
can be tuned up to 2000MHz on this board. 1GHz is usually require more
voltage applied to the NB |

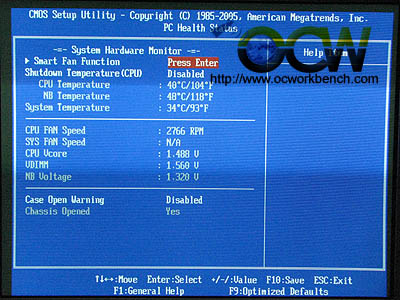

System hardware monitor |
 |
 |
|

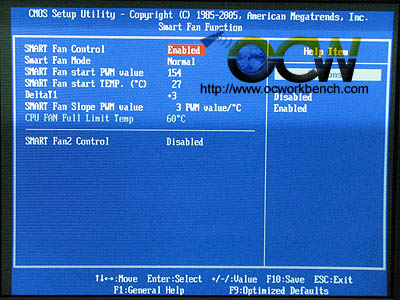

You can enable Smart FAN control here |
In Memory configuration, you can adjust the memory timings.

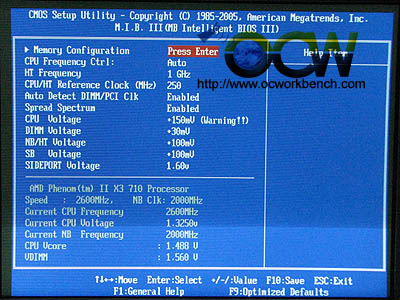

Over here you can see a summary of the processor, the voltages set. The
individual voltages can be adjusted within the range specified |
